Falling Head Permeability Set
Product Code
MK-1320 | Falling Head Permeability Set |
MK-1322 | Falling Head Permeability Cell 100 mm dia. |
MK-1324 | Wooden Stand with 3 Manometer Tubes |
MK-1326 | Soaking Reservoir Tank |
Standards
EN ISO 17892-11

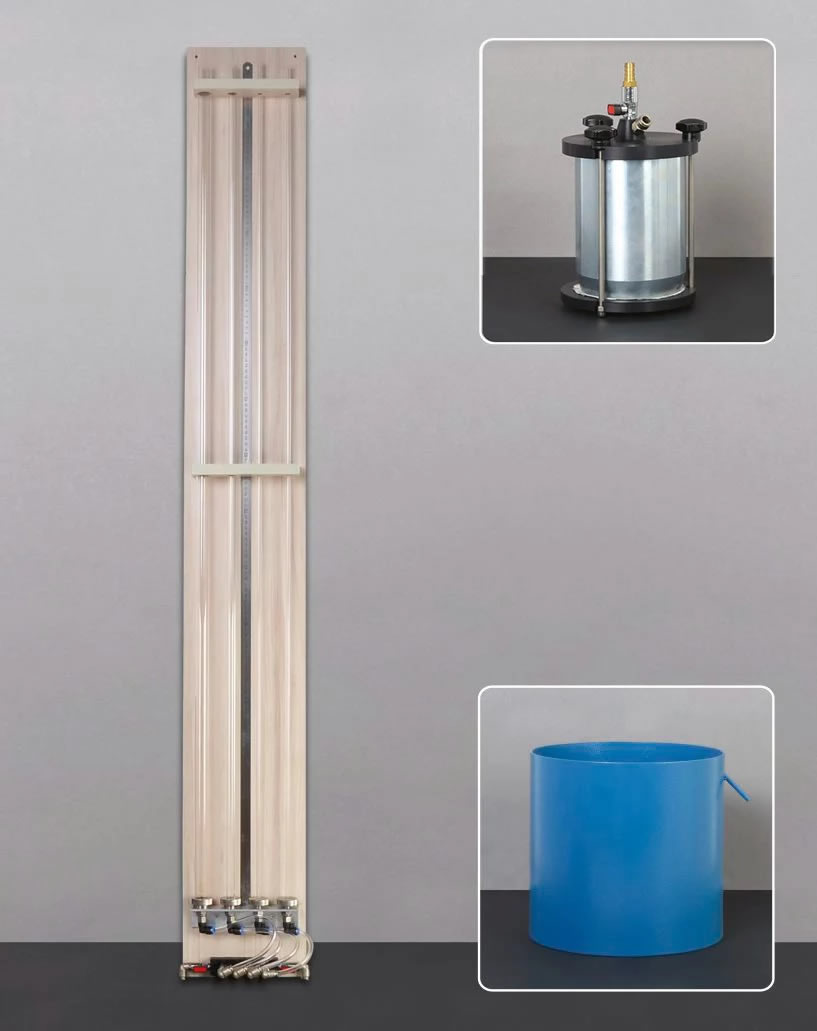

The MK-1320 Falling Head Permeability Set is used to study the behaviour of soil, particularly finegrained soils such as clay-like or silty soils, with respect to water flow.
The MK-1322 Falling Head Permeability Cell is manufactured from plated steel with an inside diameter of 100 mm.
The MK-1324 Wooden Stand is fitted with 3 glass Manometer Tubes of each 1500 mm long with inside diameters of about 12 mm, 5 mm and 3.5 mm. All tubes have connection valves.
The MK-1326 Soaking Reservoir Tank is manufactured from plated steel with an over-flow tube and is used for containing the permeability cell during the test.
Optional Equipment For De-Airing Water should be ordered separately.
The MK-1320 Falling Head Permeability Set is supplied complete with;
- Ø 100 mm Falling Head Permeability Cell
- Wooden Stand with 3 manometer tubes
- Soaking Reservoir Tank
- 3 m Hose (UTGP-1440)
Product Code | Dimensions | Weight (approx.) |
|---|---|---|
MK-1322 | 150x150x260 mm | 3 kg |
MK-1324 | 220x135x1700 mm | 4,5 kg |
MK-1326 | 320x320x250 mm | 3.6 kg |

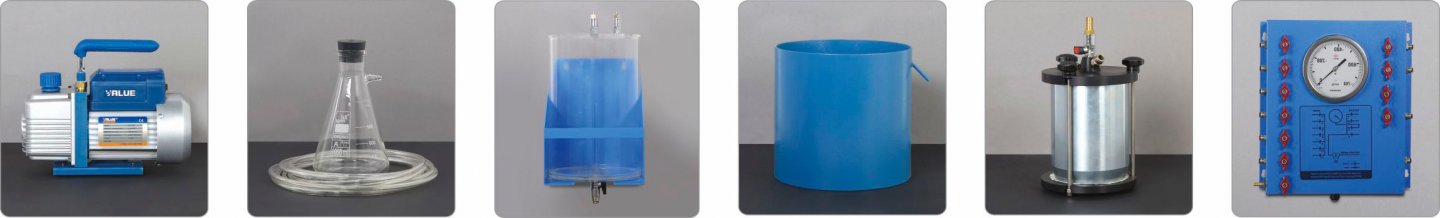

MK-3505 MK-2016/MK1140 MK-1330 MK-1326 MK-1322 MK-3580

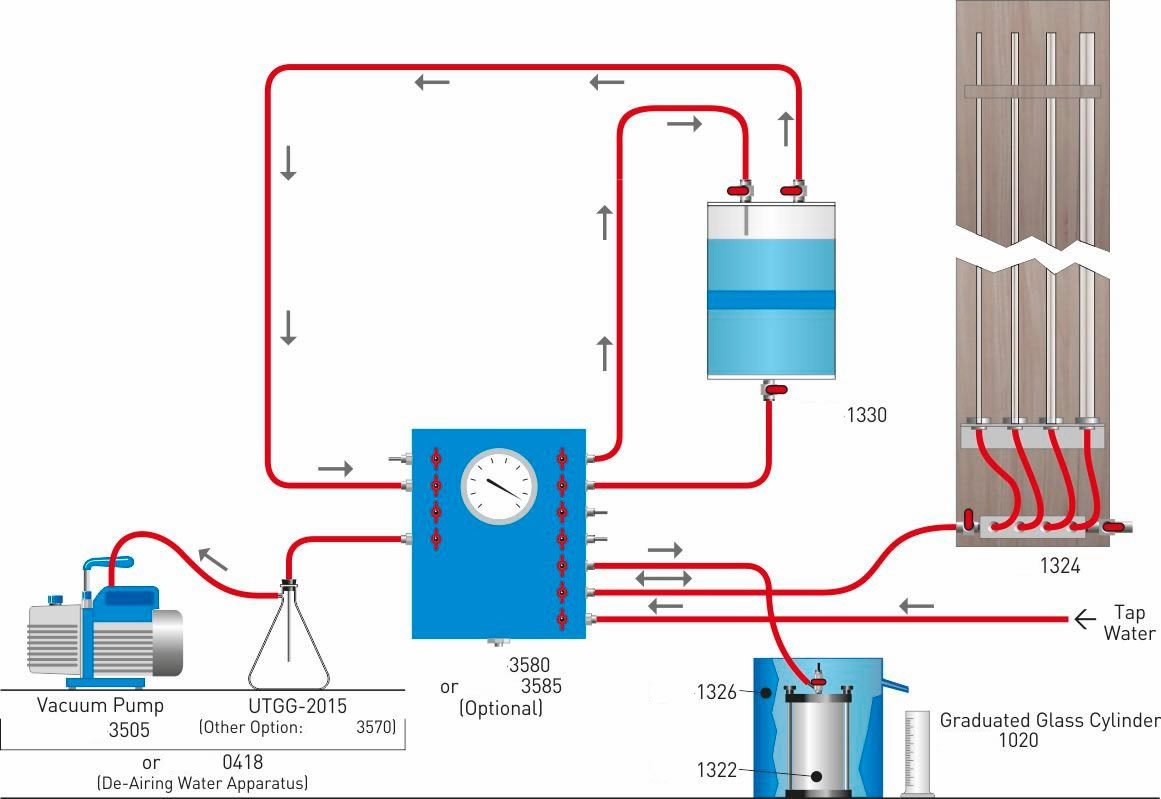

Falling Head Permeability Test with De-Airing Water System
