Constant Head Permeability Set, BS
Product Code
MK-1300B | Constant Head Permeability Set, BS, |
MK-1302B | Constant Head Permeability Cell, BS, |
MK-1305B | Wooden Stand with 3 Manometer Tubes |
MK-1308 | Constant Level Water Tank, 7 L. |
MK-0645 | Tamping Rod Ø 8x300 mm |
Standards
BS 1377:5
The UTS-1300B Constant Head Permeability Set is used to study the behaviour of soil, relatively coarse-grained soil such as sands and gravel, in its natural conditions with respect to water flow.
MK-1302B cell has 3 pressure points.
MK-1305B Wooden stand is fitted with 3 glass manometer tubes each being 1000 mm long.
MK-1308 Constant Level Tank 7 L, made of transparent plastic, is used to provide constant water level in the manometer tubes.
Optional Equipment For De-Airing Water and Tamping Rod should be ordered separately.

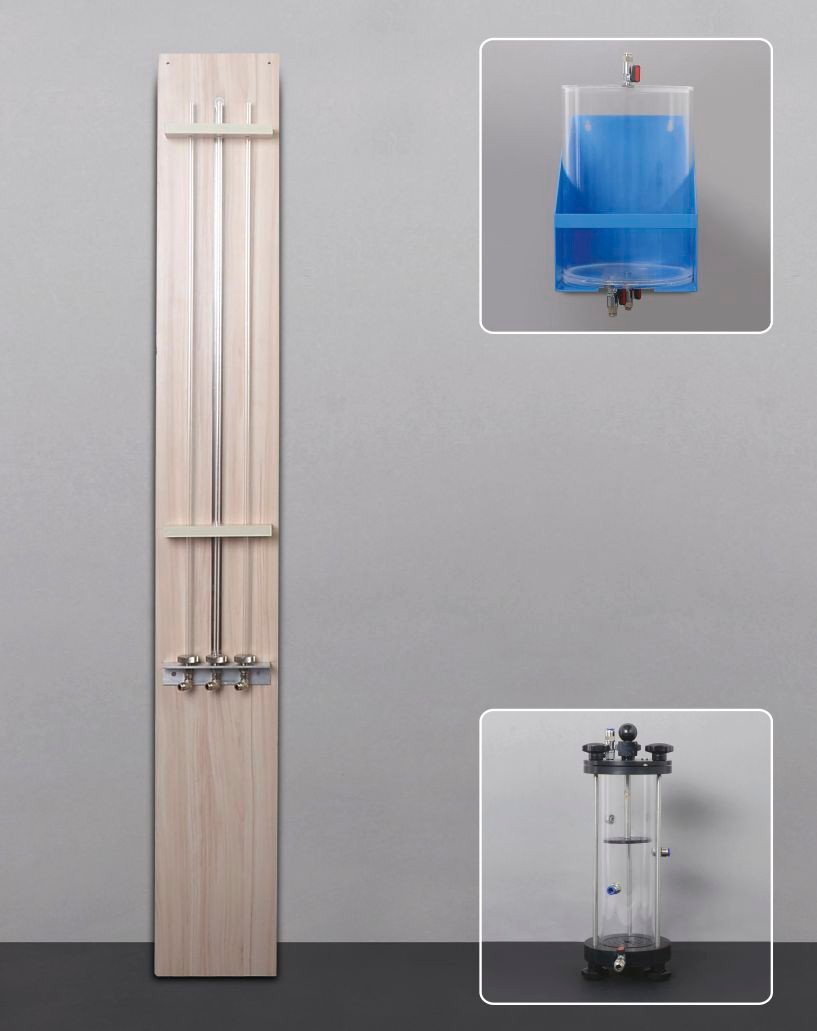

The Constant Head Permeability Sets are supplied complete with;
- Ø 80 mm Permeability Cell with Pressure Points at 3 different levels and 2 pcs. Wire Gauze fit for the prefered cell dia.
- Constant Level Water Tank (UTS-1308)
- Wooden Stand with 3 manometer tubes
- 10 m Hose (UTGP-1145)
Product Code | Dimensions | Weight (approx.) |
|---|---|---|
UTS-1302B | 140x220x420 mm | 3.5 kg |
UTS-1305B | 220x70x1700 mm | 5.6 kg |
UTS-1308 | 300x200x250 mm | 3 kg |
UTA-0645 | Ø 8x300 mm | 0.5 kg |

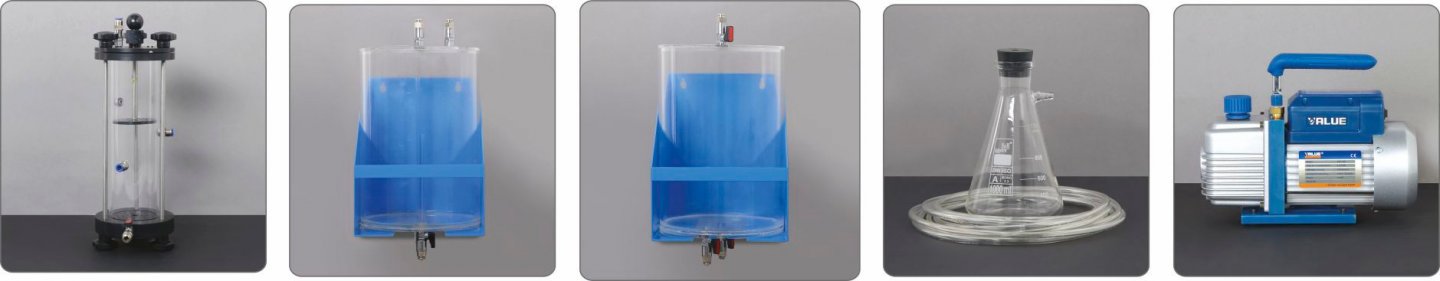

UTS-1302B UTS-1308 UTS-1330 UTGG-2016/UTGP-1140 UTGE-3505

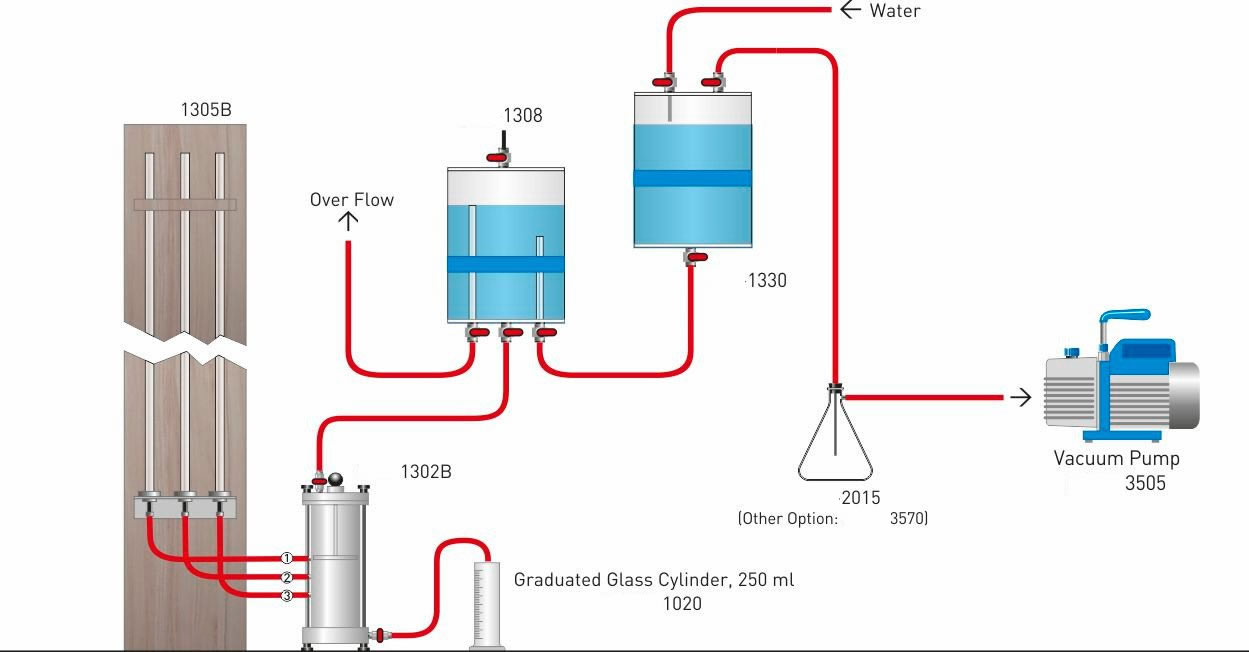

Constant Head Permeability Test with De-Airing Water System
