Constant Head Permeability Cells, ASTM
Product Code
UTS-1302A | Constant Head Permeability Cell, ASTM 80 mm dia. (nominal) with transparent plexy body |
UTS-1303A | Constant Head Permeability Cell, ASTM 120 mm dia. (nominal) with transparent plexy body |
UTS-1305A | Wall Type Metal Manometer Panel with Two Tubes |
UTS-1306A | Sliding Tamper, ASTM, |
UTS-1309A | Constant-Head Filter Tank, 4 L. (Supplied without sand) |
UTS-1311A | Constant Head Permeability Cell, ASTM 63 mm (2.5”) dia. with metal body |
UTS-1312A | Constant Head Permeability Cell, |
UTS-1313A | Constant Head Permeability Cell, |
UTS-1314A | Constant Head Permeability Cell, |
UTS-1315A | Constant Head Permeability Cell, |
UTGP-1140 | Plastic Hose, Ø8 mm OD, 3 m |
Standards
ASTM D 2434
Constant Head Permeability Cells are used to study the behaviour of soil, relatively coarse-grained soil such as sands and gravel, in its natural conditions with respect to water flow.

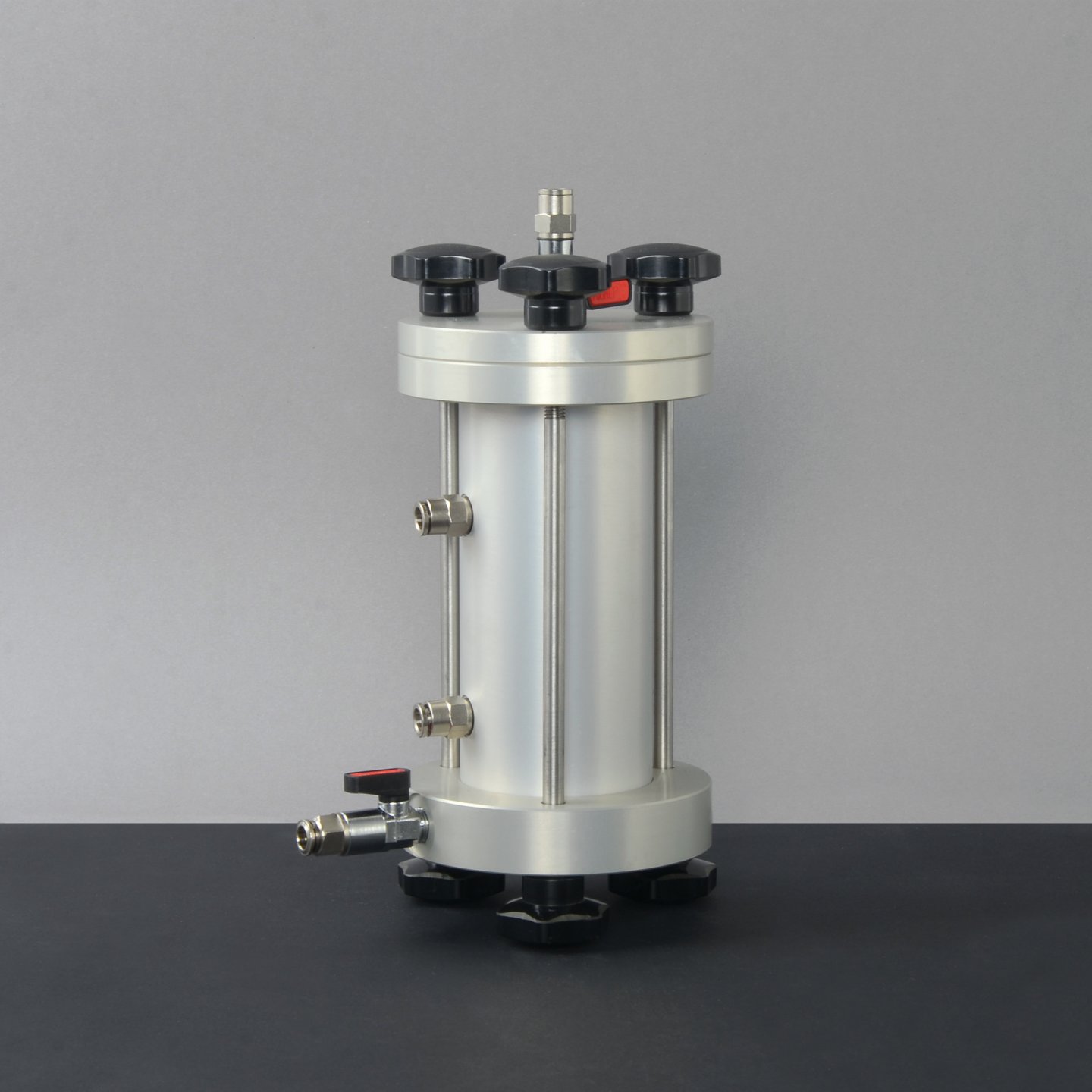

The cells have an transparent plexy or metal body with 2 pressure points at different level and aluminium base and head.

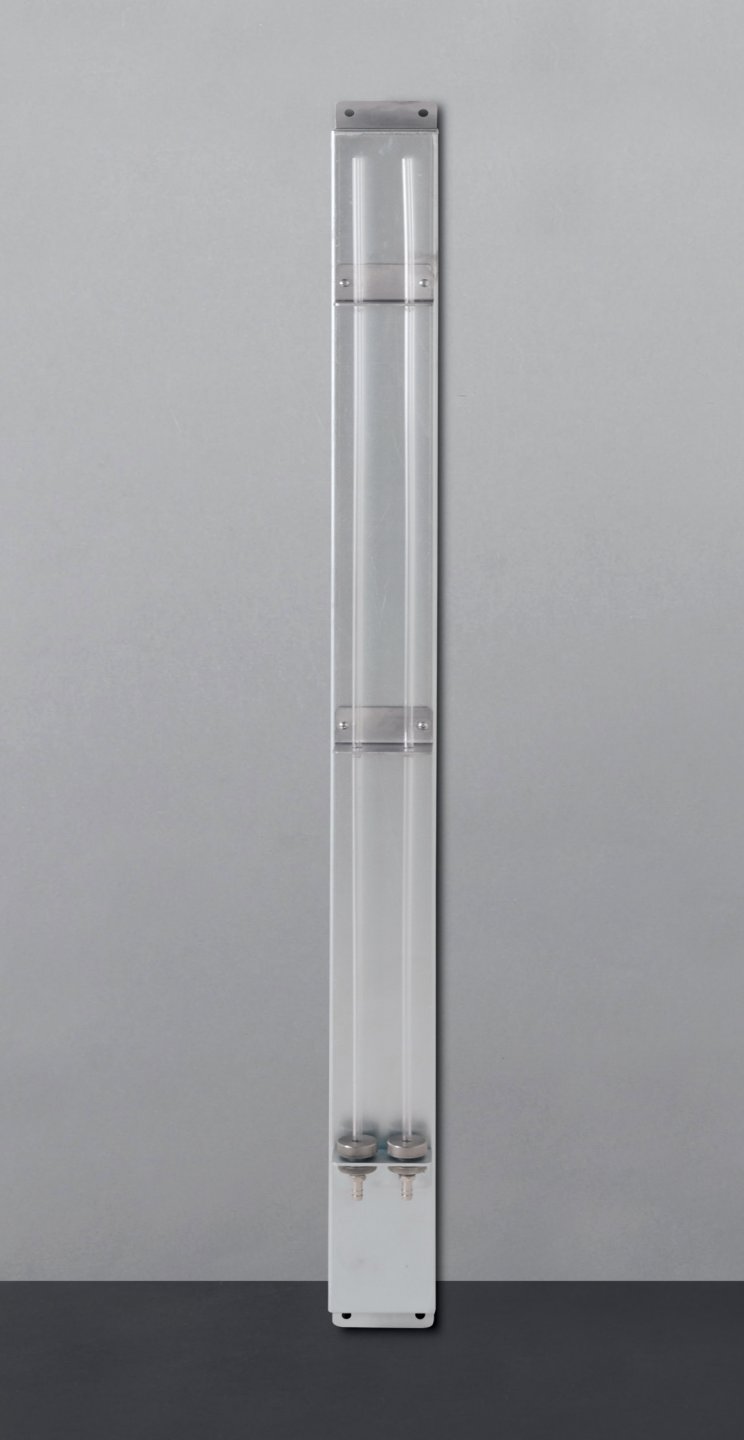

UTS-1305A Wall type metal manometer panel is fitted with 2 manometer tubes each being 1000 mm long. Each tube has its own valve.
UTS-1309A Constant-Head Filter Tank, made of transparent plexy, has separate valves for inlet, outlet and overflow. Supplied with metal carriying case for wall mounting.
The Manometers Panel, Sliding Tamper, UTS-1309A Constant-Head Filter Tank and The Equipment for De-Airing Water should be ordered separately.
The Constant Head Permeability Cells are supplied complete with;
Perforated plates and No.100 screen (each 2pcs.).
UTS-1305A
Product Code | Dimensions | Weight (approx.) |
|---|---|---|
UTS-1302A | 140x220x420 mm | 4 kg |
UTS-1303A | 180x250x640 mm | 7 kg |
UTS-1305A | 250x250x200 mm | 2 kg |
UTS-1306A | 50x50x400 mm | 2 kg |
UTS-1309A | 200x300x200 mm | 5 kg |
UTS-1311A | 200x200x350 mm | 5 kg |
UTS-1312A | 250x250x350 mm | 7 kg |
UTS-1313A | 300x300x350 mm | 8 kg |
UTS-1314A | 350x350x350 mm | 10 kg |
UTS-1315A | 400x400x350 mm | 10 kg |
