De-Airing Water Systems
Product Code
MK-2418 | De-Airing Water Apparatus, 230V, 50Hz, 1ph |
MK-1330 | De-Airing Water Tank, 7 L. |
UTGE-3580 | Vacuum Control and Water Connection Panel with Vacum Gage Manometer |
UTGE-3505 | Vacuum Pump 51 L/min. Capacity, 220-240 V 50-60 Hz |
UTGG-2015 | Filter Flask for Vacuum, 2000 ml |
UTGE-3570 | Air Drying Unit / Water Trap, Vacuum Type |
UTGP-1140 | Plastic Hose, Ø8mm OD, 3 m |
The MK-De-Airing Water Apparatus is a compact and self-contained equipment which can de-air water quickly for geotechnical test methods. The apparatus used in conjunction with the de-airing tank (MK-1330). Air is removed from the water by a vacuum system. De-airing tank should be ordered separately.
The first option for de-airing water;
- De-Airing Water Apparatus MK-2418
- De-Airing Water Tank (MK-1330)
- Vacuum Control and Water Connection Panel with Regulator and Vacum Gage Manometer (UTGE-3580) (These panel is optional)
- Plastic Hose (UTGP-1140)
The second option for de-airing water;
- Vacuum Pump (UTGE-3505),
- Filter Flask (UTGG-2016) or Air Drying Unit / Water Trap (UTGE-3570)
- De-Airing Water Tank (MK-1330)
- Vacuum Control and Water Connection Panel with Vacum Gage Manometer (UTGE-3580) (These panel is optional)
- Plastic Hose (UTGP-1140),
By using UTGE-3580 Vacuum Control and Water Connection Panel, vacum pressure degree can be regulated . By using UTGE-3580 de-aring water equipment can be used without repeated assembling the hoses.The panels are supplied with 3m hose (UTGP-1140).
MK-1330

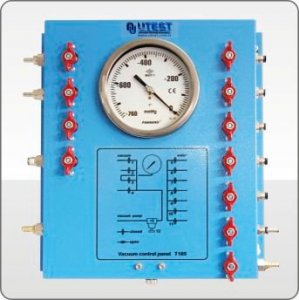

UTGE-3580
UTGE-3570
Product Code | Dimensions | Weight (approx.) |
|---|---|---|
MK-2418 | 240x460x380 mm | 15 kg |
UTGE-3580 | 300x400x100 mm | 5 kg |
MK-1330 | 200x300x250 mm | 3 kg |
UTGG-1442 | 120x120x220 mm | 0.5 kg |
UTGE-3505 | 290x120x220 mm | 7 kg |
UTGE-3570 | 70x70x240 mm | 0,5 kg |
